The Bluetooth That Was Never Dead: My Dell Venue 8 Pro Baud-Rate Journey

Estimated reading time: 10 minutes

Table of contents

Table of contents

• The Easy Route I Did Not Take
• The Motivation: One Last Red Light
• The Checklist: What “Working” Had to Mean
• The Journey: Diagnosing a Silent Patient
  • The Symptom
  • The Cause (or so I thought)
• The Reveal: It Was the Baud Rate All Along
• Why a Number This Boring Stayed Hidden
• The Implementation: The Dell Venue 8 Pro Bluetooth Fix That Sticks
  • 1. Get a real serial port ( bt0off SSDT override)
  • 2. A short bring-up tool ( bthci )
  • 3. A systemd service ( bt-venue.service )
  • One footnote worth flagging
• The Repo: Everything in One Place
• Final Thoughts

Some projects end with a triumphant “eureka.” This one ended with me staring at a single number and feeling faintly ridiculous. For weeks I had been convinced the internal Bluetooth on my Dell Venue 8 Pro was a dead lump of silicon. If you’re troubleshooting Dell Venue 8 Pro Bluetooth issues, you might understand my frustration. It was not. It had been sitting there the entire time, wide awake, politely ignoring me because I kept knocking at the wrong speed.

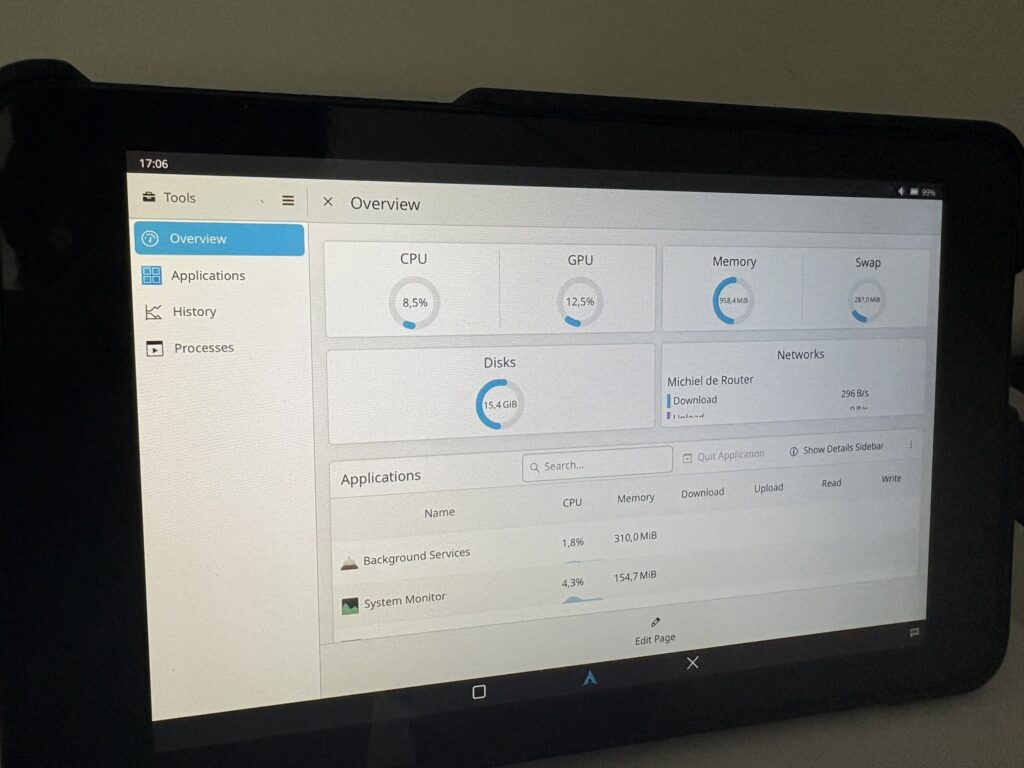

Let me back up. This little 2013-era Bay Trail tablet has become one of my favourite tinkering targets. It now runs Arch Linux with Plasma Mobile, and after a long list of fixes (the Wi-Fi self-disconnect, the 5 GHz regdomain, zram, the eMMC “no disks” widget, the Arch logo on the home button) it is genuinely pleasant to use. Everything worked. Everything except one stubborn holdout: the internal Bluetooth.

The Easy Route I Did Not Take

Before anyone points it out in the comments: yes, I know Ubuntu Touch exists. I know postmarketOS exists. Both are built precisely for hardware like this, old tablets and phones that deserve a second life, and either would very likely have given me a smoother touch-first experience with far less fiddling. Going that way would have been the sensible move.

I just like Arch Linux. I like that this tablet runs the exact same rolling-release system as every other machine I own, with the same pacman, the same AUR, and the same up-to-date packages, no separate ecosystem to learn or wait on. And honestly, the fiddling is not the price of this hobby, it is the product. A distro that removed the need for posts like this one would have removed the fun along with it.

The Motivation: One Last Red Light

I could have plugged in a two-euro USB Bluetooth dongle in my Dell Venue 8 Pro and been done in ten seconds. That is exactly the advice every forum thread offers, and it is exactly the advice the Stubborn Tinkerer in me refused to take. The hardware is right there, soldered to the board, a discrete Atheros AR3002 wired to the SoC over a serial line. Giving up on it and hanging a dongle off the single USB port felt like admitting defeat on principle. So, naturally, I spent an absurd number of evenings on it instead.

The chip presents to Linux as an ACPI device called DLAC3002, an HCI-over-UART Bluetooth radio hanging off one of the Bay Trail high-speed UARTs. Once you free that UART from its ACPI serdev binding, it shows up as a plain old serial port, /dev/ttyS4. In theory, you open the port, send a Bluetooth GET_VERSION command, and the chip answers. In practice, it answered nothing. Ever.

The Checklist: What “Working” Had to Mean

Before going down the rabbit hole, I decided what a real fix had to look like. No half-measures:

• Internal only. No dongle. The soldered-on radio, or nothing.
• No out-of-tree kernel module. Anything I build has to survive a pacman -Syu kernel bump without me babysitting it. That means stable userspace ABIs only.
• Automatic and persistent. It has to come up as hci0 on every boot and Just Work with bluetoothctl, pairing headsets like any normal adapter.

The Journey: Diagnosing a Silent Patient

Here is where I lost those evenings.

The Symptom

Total silence. I would set the port to 115200 baud, 8N1, send the exact bytes a Bluetooth controller expects, and read back nothing. Not garbage, not corrupted frames, nothing. The receive counter in /proc/tty/driver/serial sat at a flat zero, with zero framing errors. That last detail is what threw me. A chip transmitting at the wrong speed still floods you with framing errors as the UART mis-slices its bits. Zero framing errors reads like an electrically dead wire. So the working theory, reasonably, became “this chip is not transmitting at all.”

Which raised the obvious question: is it even powered on? On this platform the AR3002 has no clean power rail you can flip. ACPI hands it exactly two GPIOs (line 52 for power/enable, line 53 for wake) plus a host-wake interrupt, and nothing else. To drive those correctly, I needed to know exactly what the Windows driver does. And since there is no Windows on this tablet anymore, the only source of truth was the driver binary itself.

The Cause (or so I thought)

I pulled qcbtuart.sys apart with radare2, including the Dell-shipped build with its full PDB symbols, which turned guesswork into a byte-exact reading of the power-on sequence. The decompiler was clear: drive the power GPIO HIGH (an earlier attempt of mine had this polarity inverted and was cheerfully holding the chip switched off the whole time), wait 150 ms, pulse the wake pin, configure the UART for 8N1 with hardware flow control, and start talking. No secret register pokes, no PMIC ritual, no clock-enable, and no hidden bootloader handshake. The driver just powers the thing and says hello.

I replicated all of it. GPIO polarity, timing, the exact vendor command bytes, hardware flow control, a full cold power-cycle. The chip stayed mute. I chased a missing power rail. Then I chased a missing 26 MHz clock. Then I confirmed the RX wire was electrically fine. After that, I even talked myself, with some confidence, into the conclusion that this was an unfixable hardware wall, the kind of thing you can only resolve with a logic analyzer clipped onto the board or a live Windows UART capture. I was, briefly, ready to give up and eat the dongle.

The Reveal: It Was the Baud Rate All Along

Then I noticed something in the driver’s configuration that I had been reading right past. The Windows INF file lists two baud rates for this device: a DefaultBaudRate of 115200, and an operating BaudRate of 3686400. Every single probe I had ever run used 115200. My “exhaustive” baud sweep had climbed from 9600 all the way up to 2764800… and stopped there. It never tried 3686400.

So I set the port to 3686400 baud and sent GET_VERSION one more time.

The chip answered instantly.

Not just a byte. A clean, complete Bluetooth Command Complete event, reporting ROM version 0x01020201, followed by a perfectly valid Read_Local_Version. The AR3002 was fully HCI-capable straight out of its boot ROM: valid BD address, complete feature set, no firmware download required. Weeks of “dead silicon” had been a healthy chip waiting patiently at a speed I never dialled. I sat there for a solid minute just feeling silly.

Why a Number This Boring Stayed Hidden

I want to be honest about how a value this mundane hid for so long, because it was not one mistake, it was three signposts all pointing the wrong way:

1. The documentation lied by omission. DefaultBaudRate = 115200 reads like “this chip boots at 115200.” It does not. The ROM comes up at the high rate, and the driver’s own retry logic is what walks it there. I trusted the word “Default.”
2. The instrument lied about its own ceiling. The kernel reports ttyS4 with a base_baud of 2764800. Any baud sweep built to respect the port’s advertised maximum stops below 3686400. A sweep that looks thorough never reaches the one rate that works.
3. The standard tools physically cannot get there. 3686400 is not one of the POSIX termios baud constants (B115200, B230400, and friends). hciattach and btattach set speed through those constants, so they cannot even express 3686400. That is why they always just timed out. Reaching this rate needs termios2 with the BOTHER flag to set an arbitrary integer baud. The right answer was not merely untried; with the obvious tools it was unreachable.

Put those together and 3686400 sat in a genuine blind spot: the docs pointed away from it, the port’s self-reported limit excluded it, and the standard bring-up tools could not type it.

The Implementation: The Dell Venue 8 Pro Bluetooth Fix That Sticks

With the mystery solved, the actual fix is refreshingly small, and it honours my checklist: stable ABIs only, no custom kernel module, survives kernel upgrades. Three pieces.

1. Get a real serial port (bt0off SSDT override)

By default the kernel hands ttyS4 to an ACPI serdev child, so there is no /dev/ttyS4 to open. A tiny SSDT overlay gives the Bluetooth ACPI node an _STA that returns 0, so the UART enumerates as a normal tty instead. It compiles to a small ACPI table loaded as an early initrd, and it is fully reversible by removing one line from the boot entry.

2. A short bring-up tool (bthci)

This is the whole trick, wrapped up. It powers the chip through the gpio character device (gpiochip0, lines 52 and 53), sets ttyS4 to 3686400 with hardware flow control via termios2/BOTHER (the part the stock tools cannot do), and attaches the N_HCI line discipline so the kernel exposes hci0. It uses only stable kernel interfaces, the gpio chardev and the line discipline, so there is nothing to rebuild when the kernel updates.

3. A systemd service (bt-venue.service)

Runs bthci at boot once hci_uart is loaded and /dev/ttyS4 exists. bluetoothd picks up the new adapter and auto-enables it.

That is it. Reboot, and hci0 comes up on its own, scans, and pairs. I connected a headset within a minute of finishing the service.

One footnote worth flagging

With the internal radio finally awake, Wi-Fi and Bluetooth share the 2.4 GHz front end of this combo module for the first time, so with Wi-Fi also on 2.4 GHz, active Bluetooth on my Dell Venue 8 Pro can knock the link around. The clean fix turned out to be trivial once I stopped assuming: the internal Bluetooth is 2.4 GHz-only, so keeping Wi-Fi on 5 GHz (my router has a strong 5 GHz BSS on a DFS channel) puts the two radios on different bands and they stop fighting entirely. Not a bug, just physics, with a one-band answer.

The Repo: Everything in One Place

All of this is now published. The complete setup for the tablet, this Bluetooth fix and every fix that came before it, lives at github.com/ramonvanraaij/dell-venue-8-pro. The config files are laid out under their real system paths so they can be copied straight into place, the sources for bthci and the bt0off ACPI override are included, and BLUETOOTH.md holds the version of this whole saga. There is also an idempotent install.sh that applies everything in one run: packages, config files, the Bluetooth bring-up (SSDT override, bthci, bt-venue.service), the Wi-Fi tuning, zram, and the services. One reboot later, the tablet is fully set up.

Final Thoughts

The reverse-engineering was not wasted. It gave me the correct power sequence, proved the receive path, and handed me the exact command bytes the final tool relies on. But the real lesson is much cheaper than all that effort:

• Question your instrument before you write off the target. I treated base_baud = 2764800 as ground truth about what the hardware could do, and it quietly fenced off the answer. A “dead” reading is very often a statement about your measurement setup, not the thing you are measuring.
• The boring parameters are the ones that hide. Nobody overlooked 3686400 because it was exotic. They overlooked it because it was plausible-adjacent and every label screamed 115200.
• “Dead” hardware usually isn’t. Before you reach for the logic analyzer or write off the silicon, make sure “I tried everything” actually includes the values your own tools discouraged you from trying.

The AR3002 was healthy the entire time. It was just waiting, patiently, at 3686400 baud, for someone to say hello at the right speed. The Stubborn Tinkerer is, once again, satisfied. 🙂

Project Status: 🟢 Complete. The internal Bluetooth on my Dell Venue 8 Pro is working and persistent with no dongle in sight, and every other fix (the Wi-Fi self-disconnect, 5 GHz, zram, boot stability, and the cosmetic battery-gauge glitch that briefly flashed 0% on unplug) is done and in the repo. The full setup, including an idempotent install.sh that applies everything in one run, is published at github.com/ramonvanraaij/dell-venue-8-pro.

---
